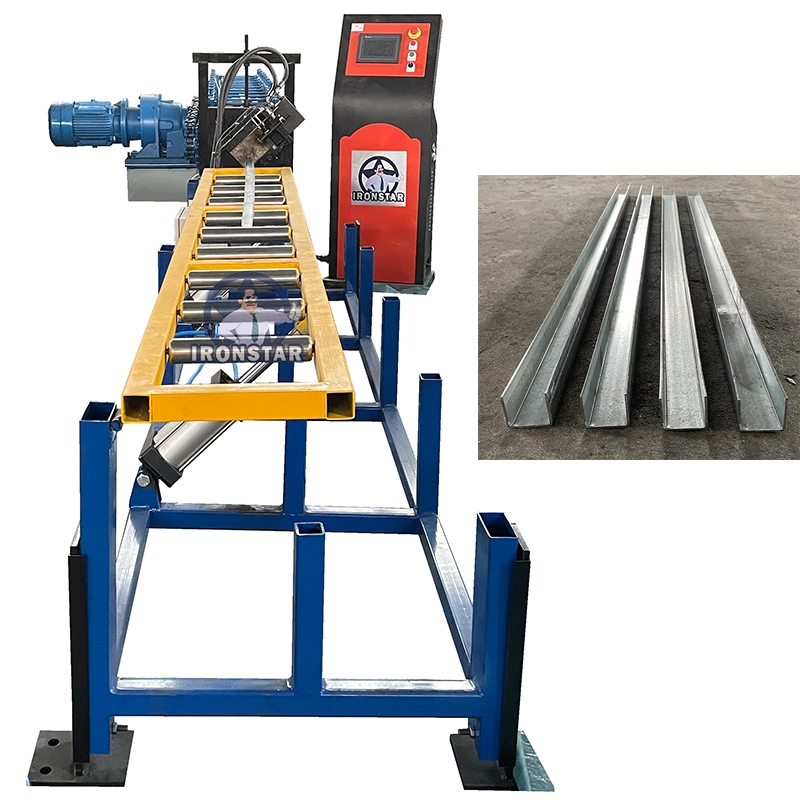

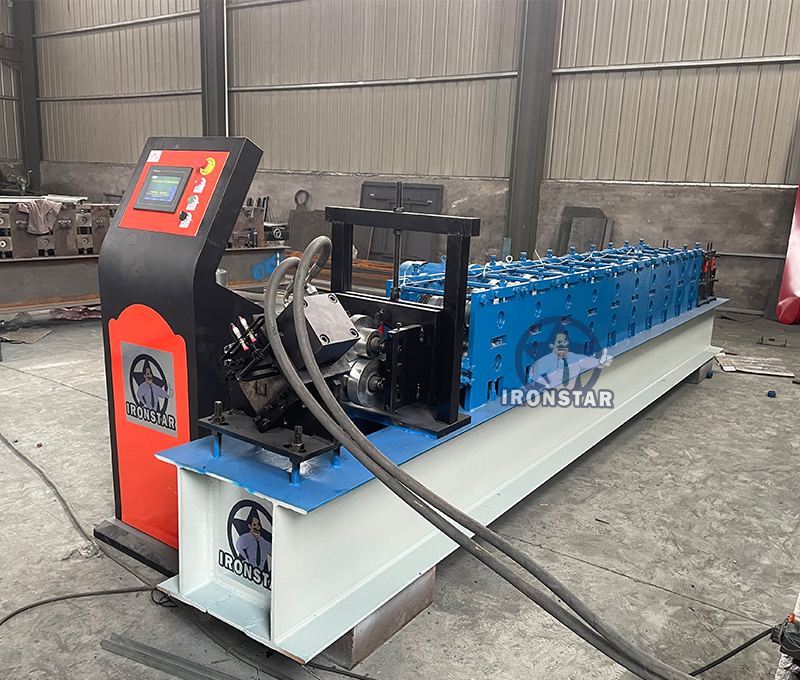

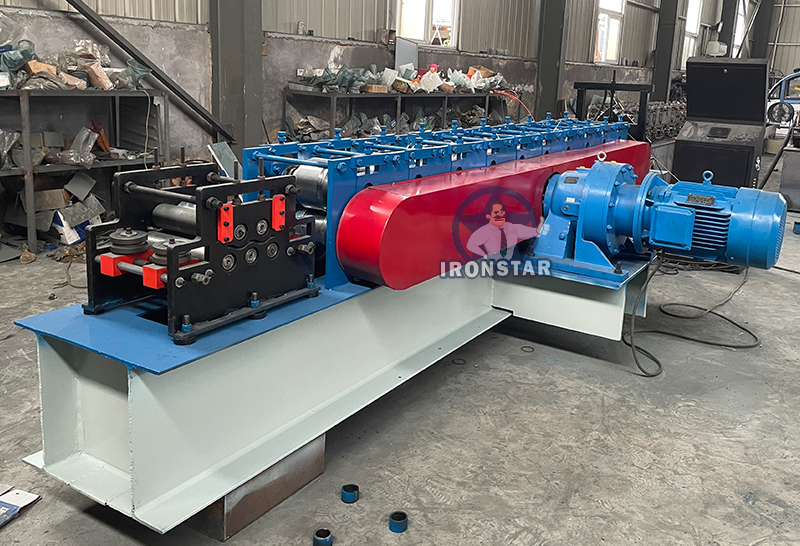

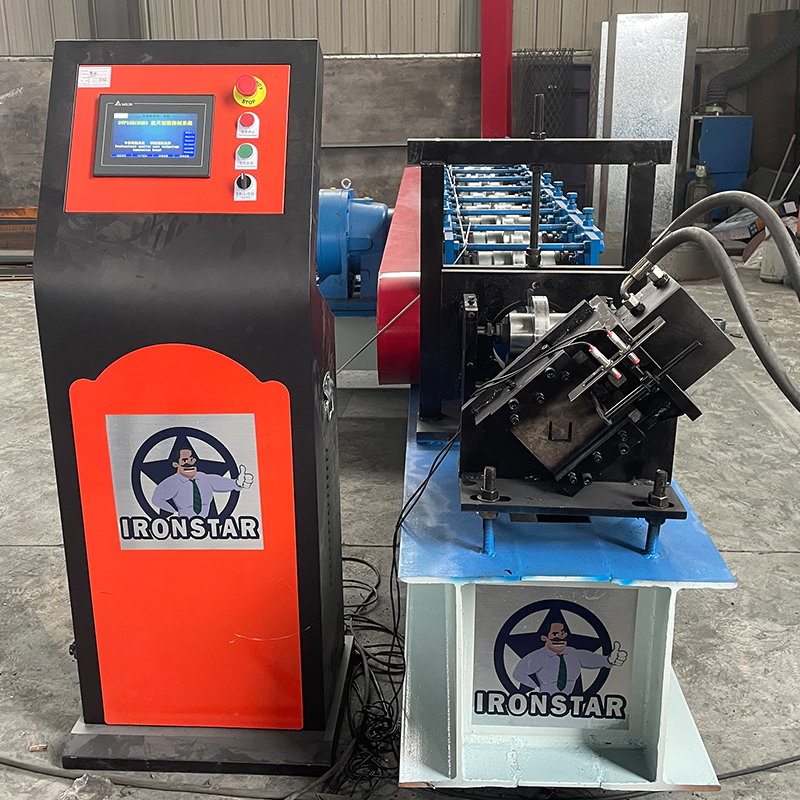

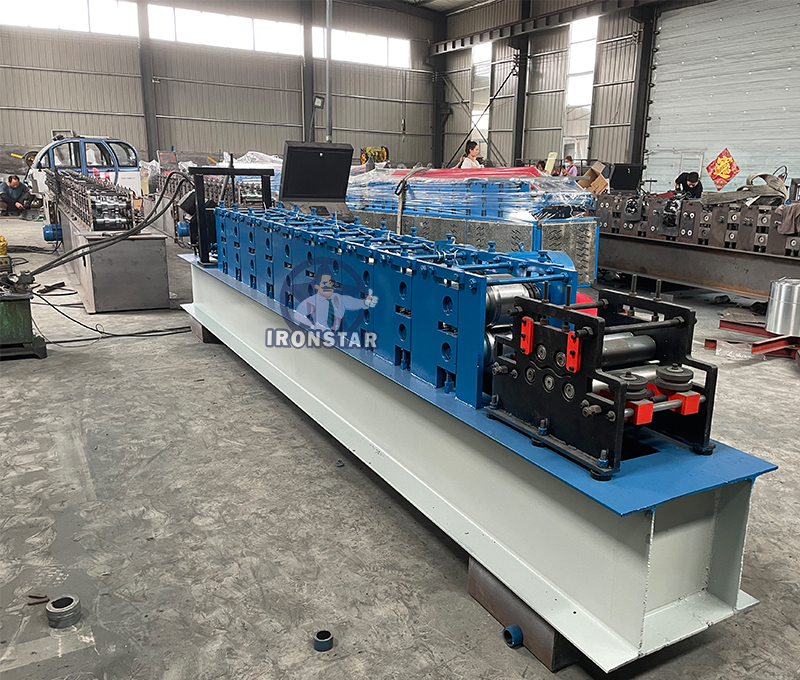

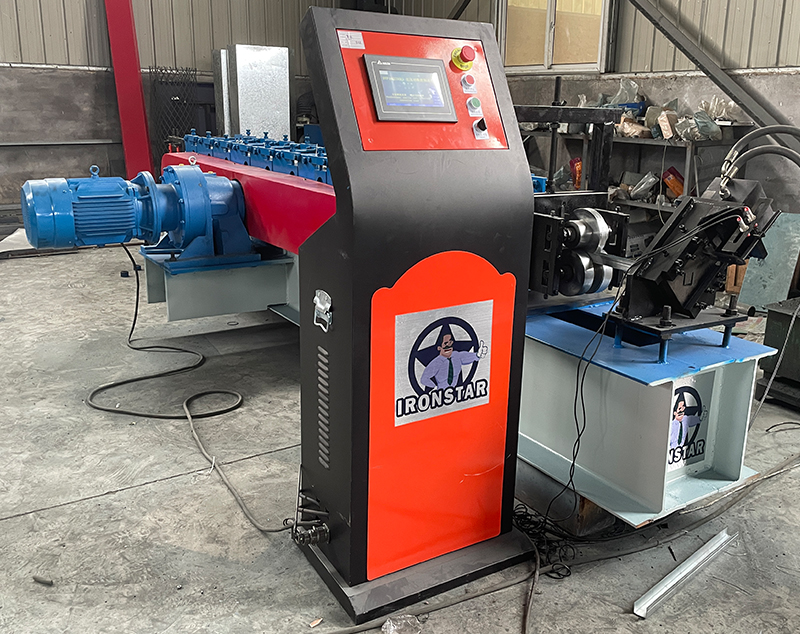

IRONSTAR u shape guaid rail roll forming machine in Russia

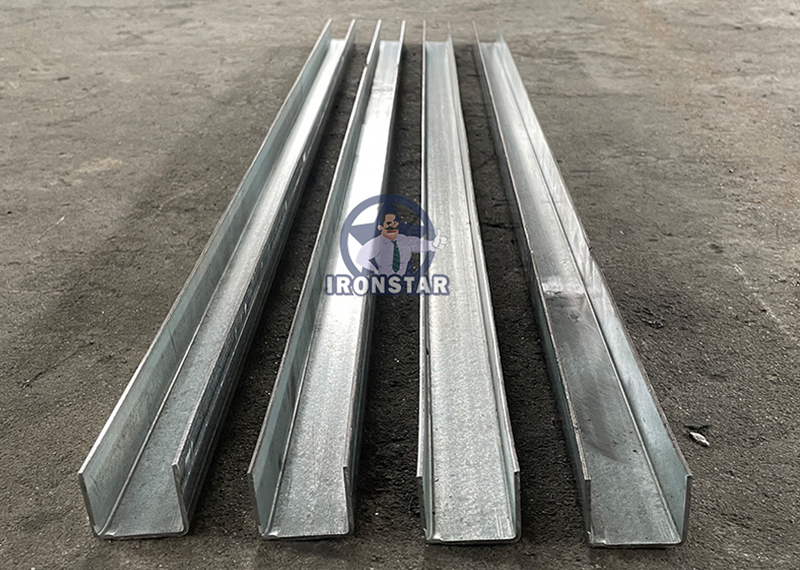

Product display
Work Flow
Roll Forming Line Include : Decoiler - Roll Forming Machine - Control Computer - Product Cutter - Receiving Table
Diameter Of Roll Forming Machine
Raw Material
This type glazed tile roll formng machine common use GI ( Galvanized Iron ) Material,
Material width before roll forming depend on product drawing
Material thickness common 1.5-3 mm
One roll common is 500- 700 kg weight
We list common used U guide rail size and about width for you reference
U Guide Rail Size | Material Width/mm | Material Thickness /mm | 1 Ton Material Length / m |
| 30 * 50 mm | 121 | 1.5 | 702 |
| 30 * 50 mm | 121 | 2 | 526 |
| 30 * 50 mm | 121 | 2.5 | 421 |
| 30 * 70 mm | 161 | 1.5 | 528 |
| 30 * 70 mm | 161 | 2 | 396 |
| 30 * 70 mm | 161 | 2.5 | 316 |
| 30 * 100 mm | 222 | 1.5 | 383 |
| 30 * 100 mm | 222 | 2 | 287 |
| 30 * 100 mm | 222 | 2.5 | 230 |
Manual Decoiler
This machine use 3 ton manual decoiler , it can stand 3 ton coil material
Work with roll forming machine together, feed material into machine
This type is manual type, when buy machine, send customer free as gift
If you want more automatic type, can choose Hydraulic decoiler
Machine Specification
| Roller Station | 13 |
| Diameter of Shaft | 60 mm |
| Shaft Material | 45# steel with 0.05mm chrome |
| Roller Material | Cr 12 |
| Machine Frame | Steel Plate welding |
| Frame Thickness | 16 mm |

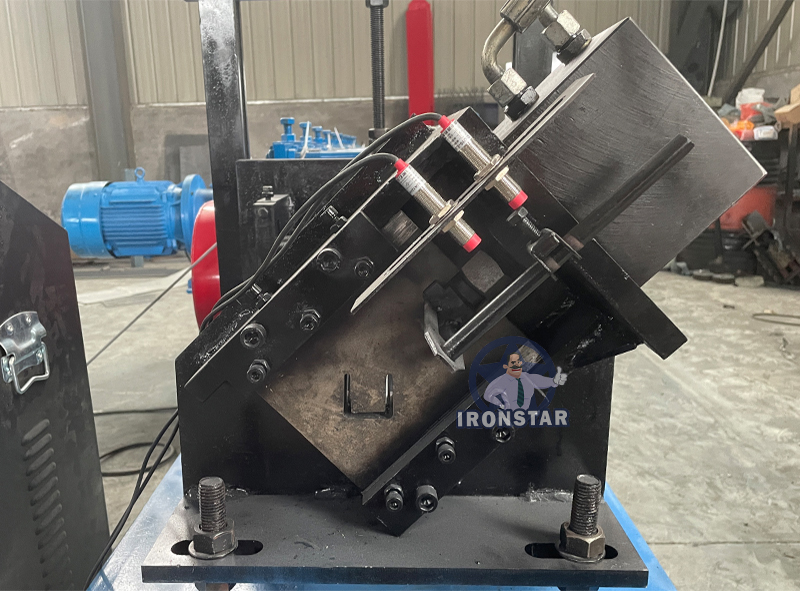

| Machine Cutter | Hydraulic Tracking Cutting |
| Working Speed | 8-20 m/min |
| Driving Way | Chain 1 inch |
| Motor Power | 5.5 KW |
| Oil Pump Motor Power | 3 KW |
| Machine Size | About 4.5×1.5×1.3 m |
| Machine Weight | About 1.8 ton |
| Machine Voltage | 380V 50HZ 3P, or customize as your need |
| Machine Color | Common Blue, or customize as your need |
| Machine Language | Chinese, English, or customize as your need |
Receiving Table
| Table Length | 3m |
| Operataion | Manual Stacker |
Receiving table use to collect finished product
When finish work, you can use forklift take it away
Package & Payment & Service
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
