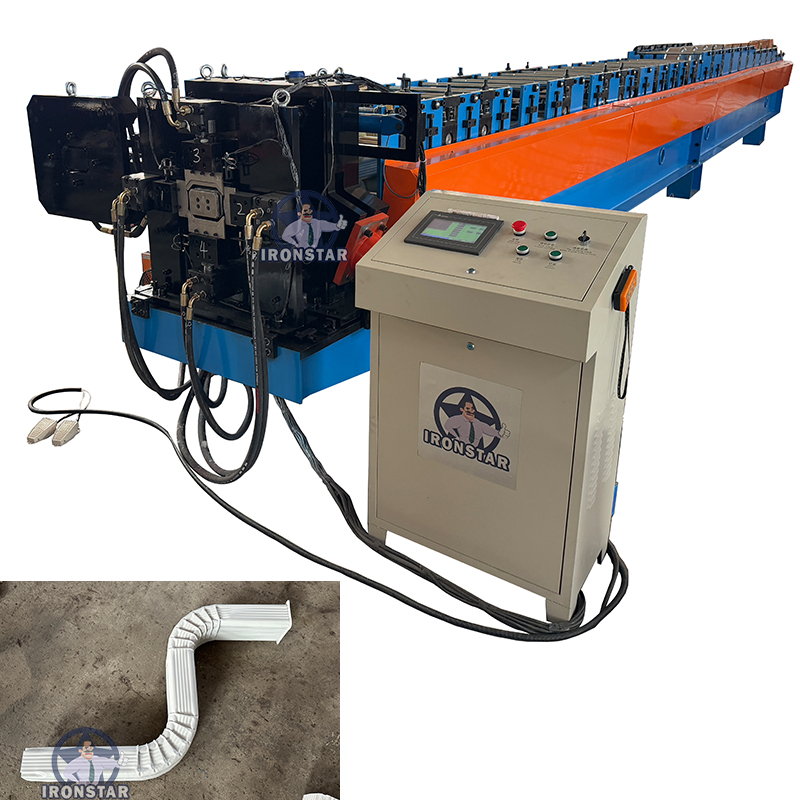

3 in 1 water downpipe roll forming machine in America

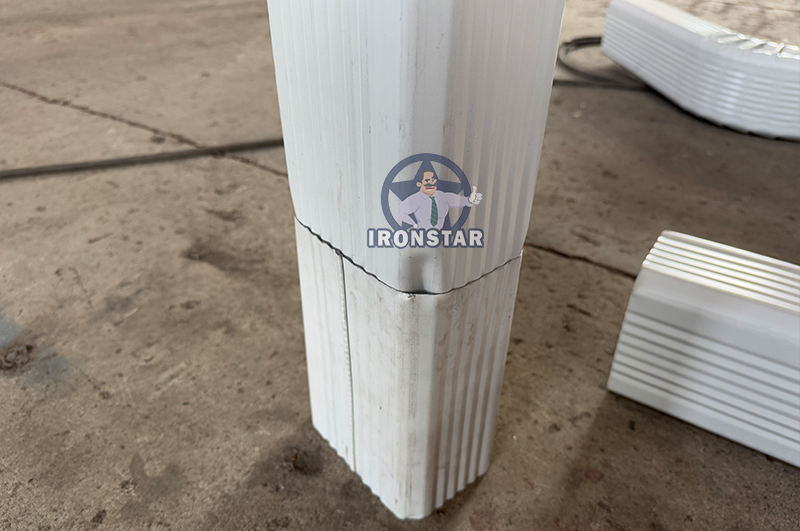

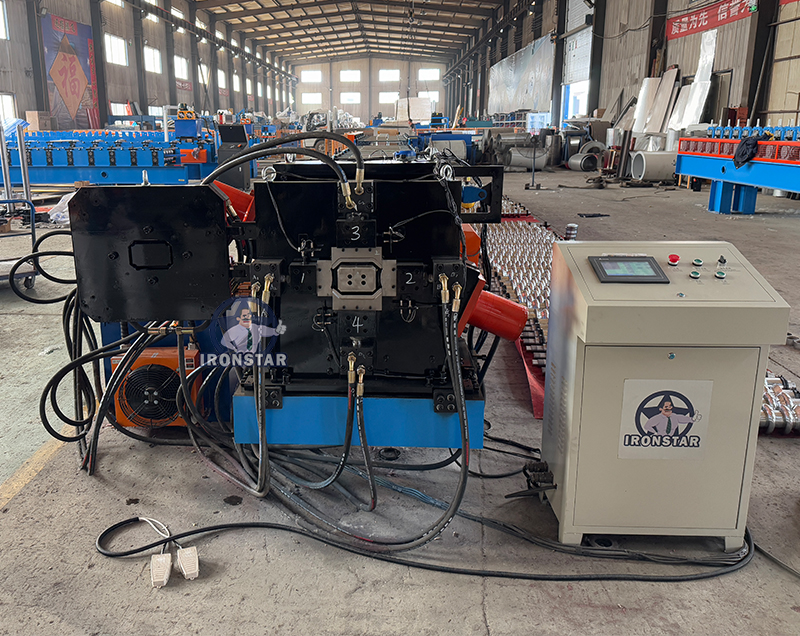

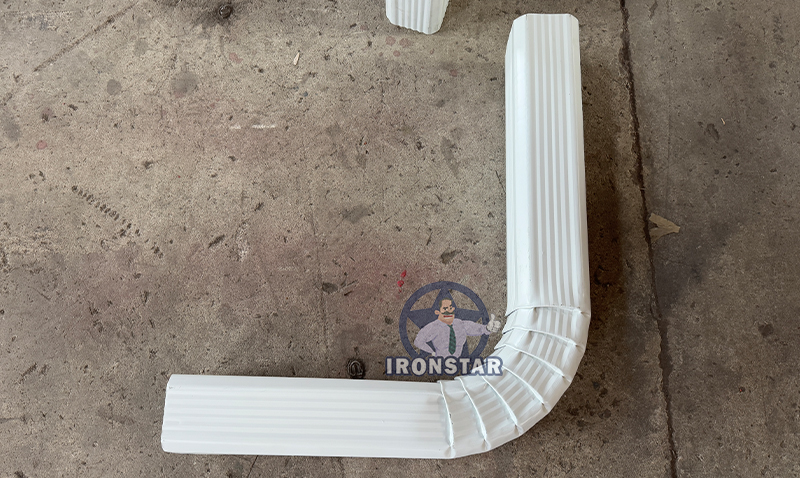

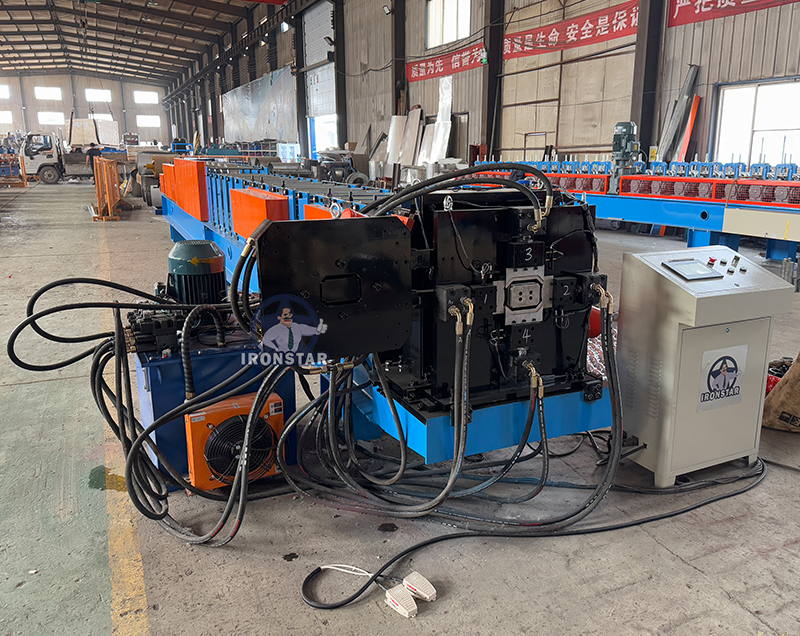

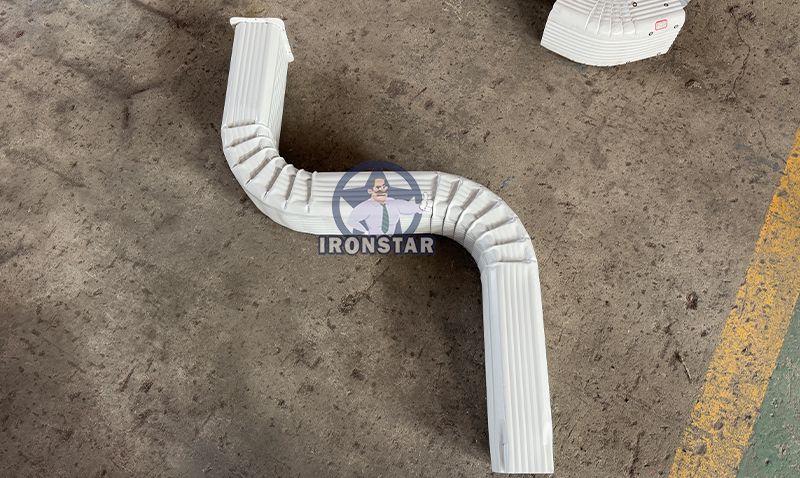

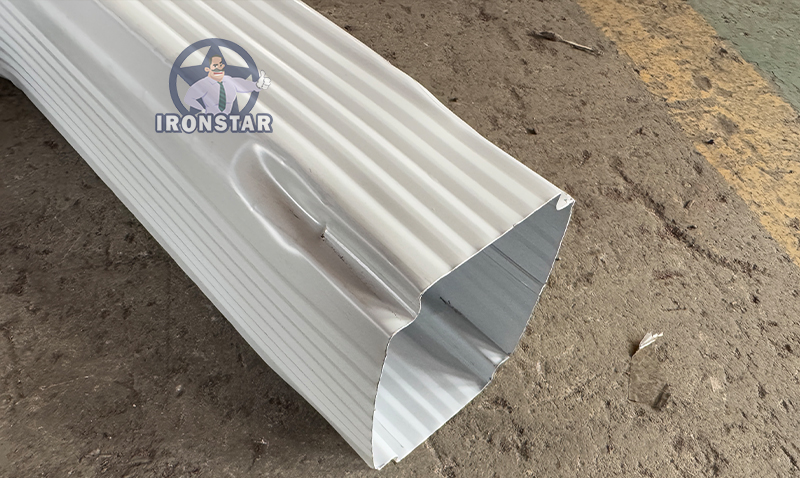

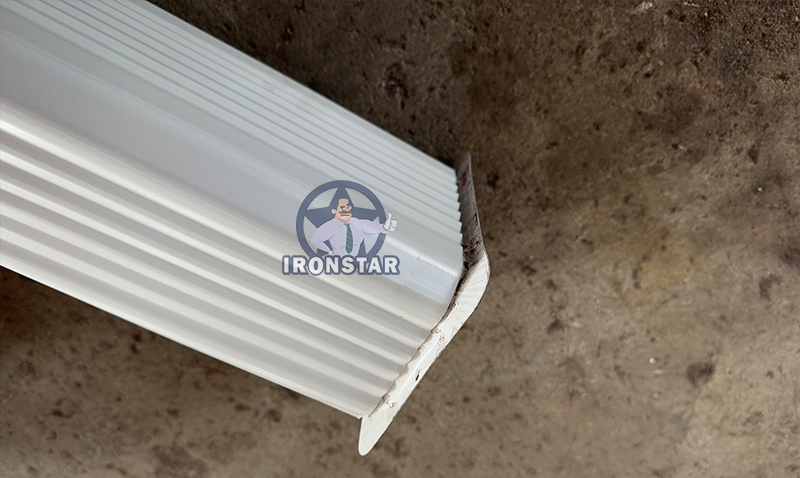

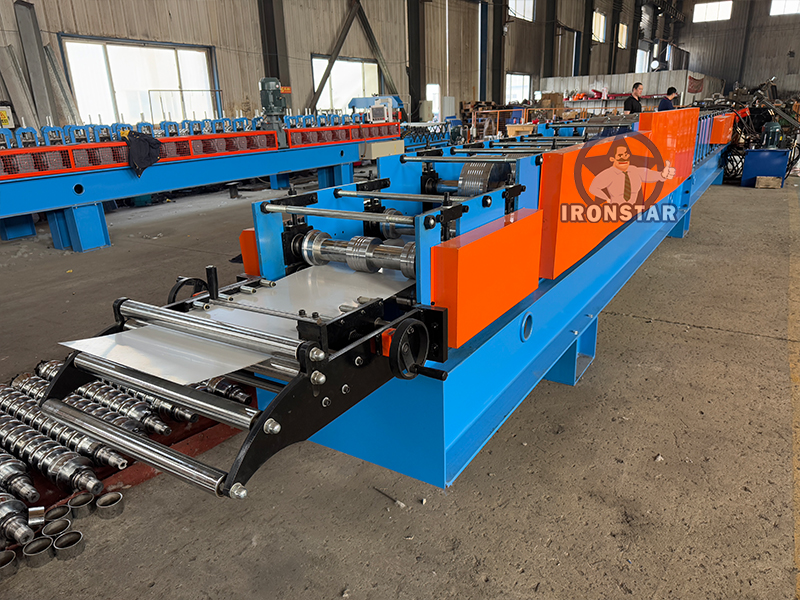

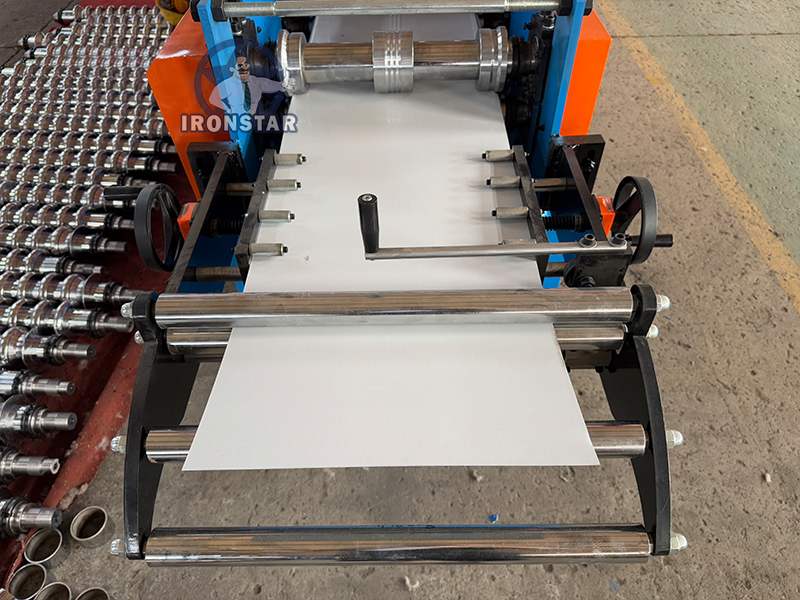

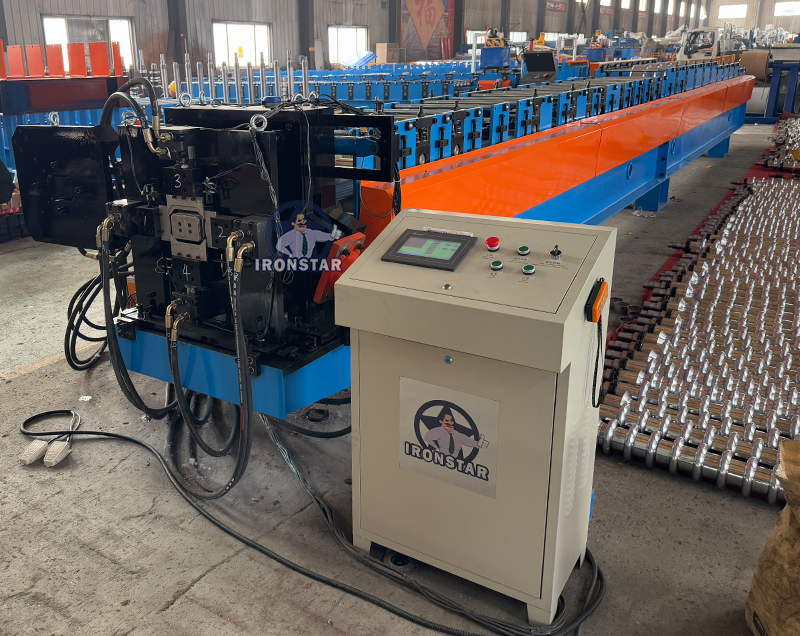

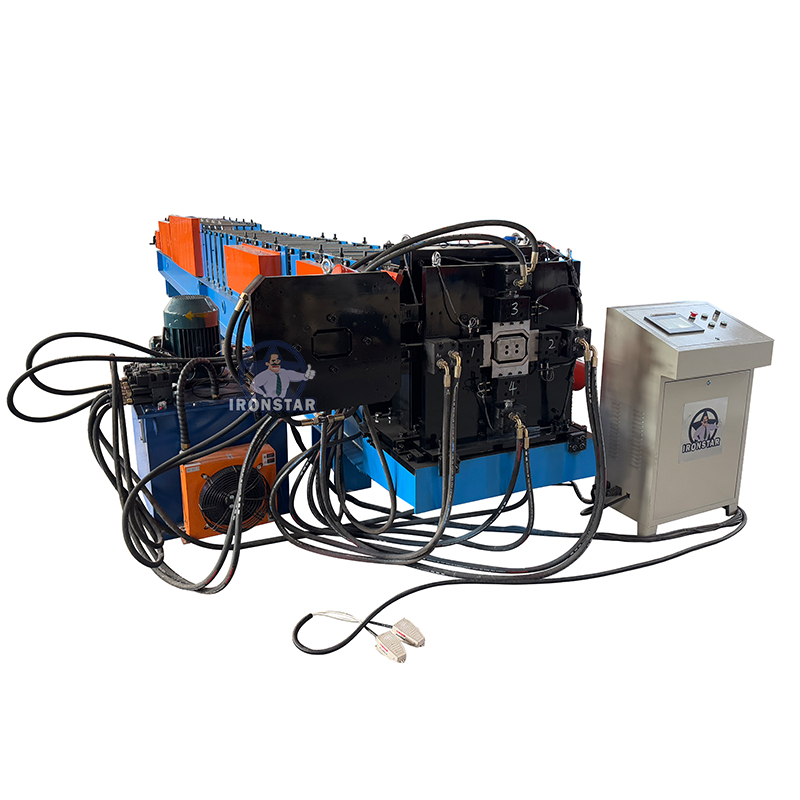

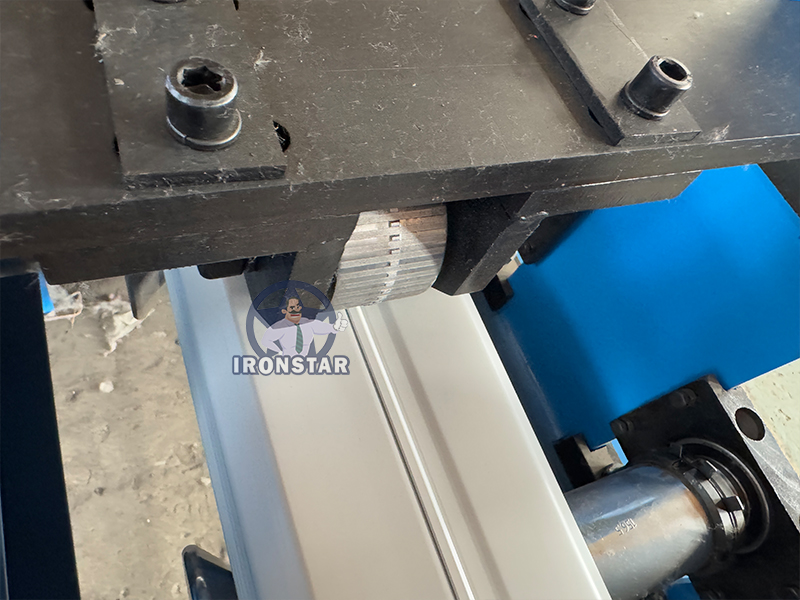

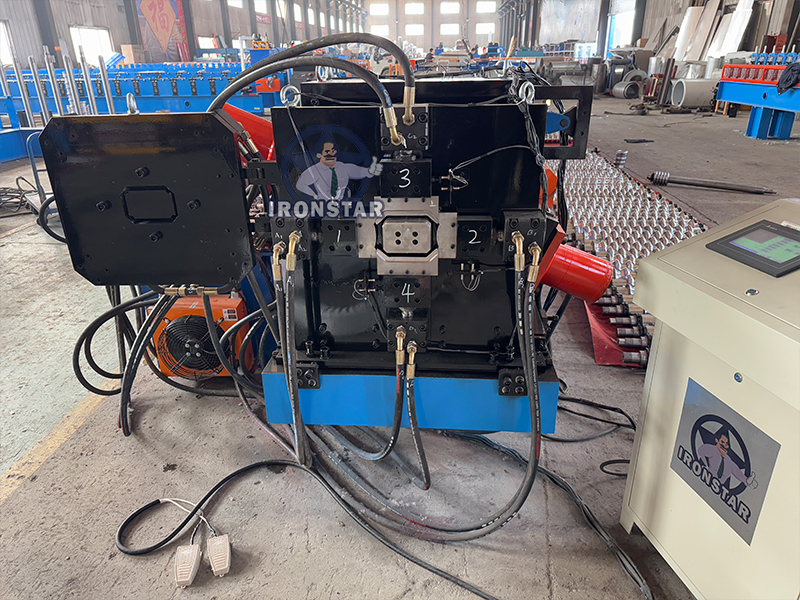

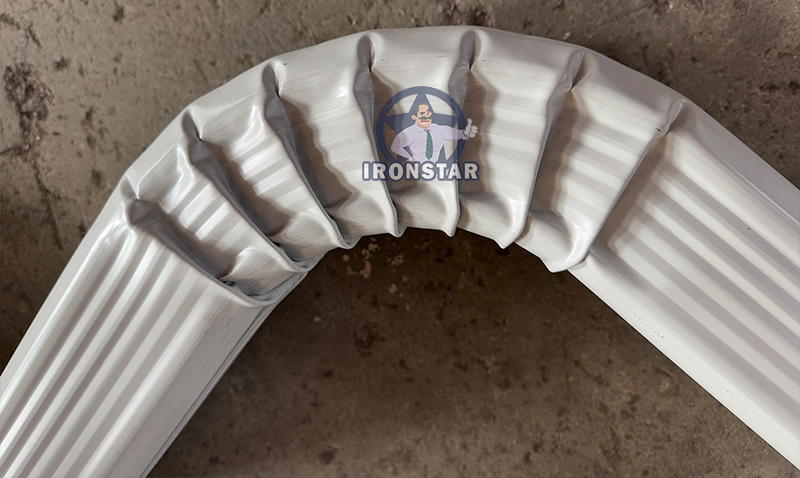

Product display
Work Flow
Roll Forming Line Include : Decoiler - Roll Forming Machine - Control Computer - Product Cutter - Receiving Table
Diameter Of Roll Forming Machine
Machine Specification
| Roller Station | 20-30 |
| Diameter of Shaft | 70 mm |
| Shaft Material | 45# steel with 0.05mm chrome |
| Roller Material | 45# steel with 0.05mm chrome |
| Machine Frame | Steel Plate welding |
| Frame Thickness | 16 mm |

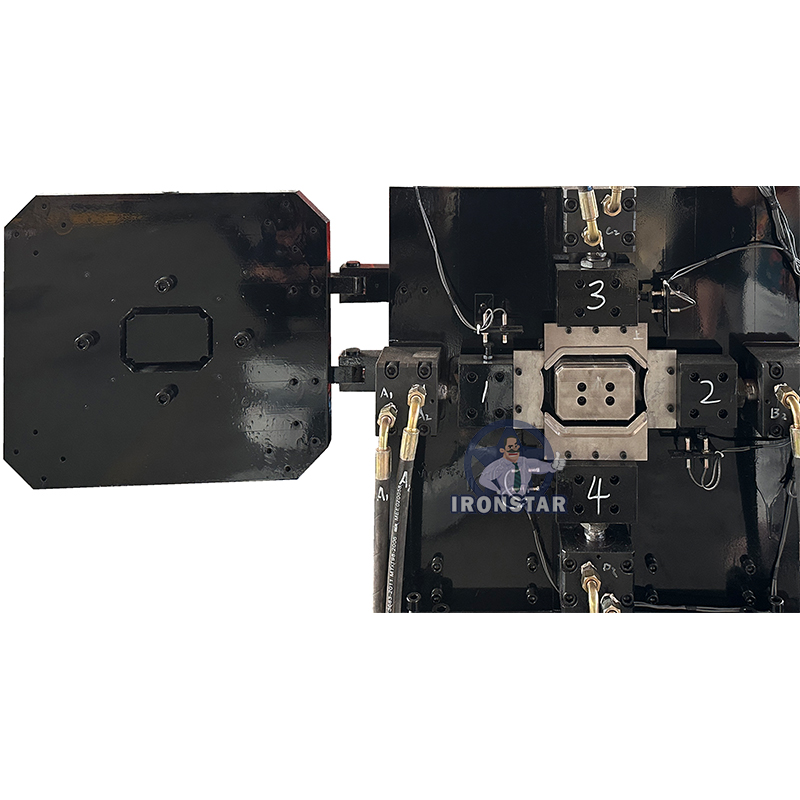

| Machine Cutter | Hydraulic Tracking Cutting |
| Working Speed | 8-20 m/min |
| Driving Way | Chain 1 inch |
| Motor Power | 7.5 KW |
| Oil Pump Motor Power | 5.5 KW |
| Machine Size | About 10.8×1.5×1 m |
| Machine Weight | About 4 ton |
| Machine Voltage | 380V 50HZ 3P, or customize as your need |
| Machine Color | Common Blue, or customize as your need |
| Machine Language | Chinese, English, or customize as your need |
Receiving Table
| Table Length | 2-3m |
| Operataion | Manual Stacker |
Receiving table use to collect finished product
When finish work, you can use forklift take it away
Package & Payment & Service
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
